XI100D 1080P 60FPS UVC USB 3.0 HDMI Capture Dongle USB2.0 HDMI Capture Card Box L3EF


  •  XI100D 1080P 60FPS UVC USB 3.0 HDMI Capture Dongle USB2.0 HDMI Capture Card Box L3EF
1_01 1_02 1_04
1_03 1_06 1_05






aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()

aeProduct.getSubject()
Features:
1. Connect multiple dongles to one machine
2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate
3. Support brightness, contrast, hue, saturation, and other screen adjustment functions
4. The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output
5. The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output
6. The video processing engine can be updated via firmware without changing the hardware.
7. Automatically detect and de-interlace signals
8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.
Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)
9. Easy to Use: No need to install drivers in Windows, Linux, and OS X, real plug and play.


Compatibility:
1. Compatible with various USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x1
2. Compatible with USB 2.0
3. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)
4. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime
5. Support software including Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and etc.

Excellent Video Processing:
1. Support up to 1920x1200p60 (CVT-RB) Video Input
2. Video output support up to 1920x1200p60 in YUY2
3. Video output support up to 1920x1200p60 in RGB24

4. The process of video and audio is done by the dongle and will not occupy CPU.



Specifications:

                                                         Connection

Host Interface

USB3.0, *300-350MB/s throughput
USB2.0, *40MB/s throughput

Input Interface

1 HDMI interface

HDMI Video Input

1 1080P/60HZ HD HDMI signal

HDMI Audio Input

1 LPCM audio signal

                                                             Standard

HDMI Input Formats

It meets HDMI 1.4a standard and supports 1080p/60Hz 8-bit, (RGB, YUV)

Output Formats

Up to 48KHz, 85db, 24-bit

Video Sampling Rate

HDMI: 165MHz

Audio and Video Capture

It meets the standards of UVC (USB video class) and UAC(USB audio class)

Output Color Space

YUY2, RGB24

                                                 Video Processing

Switch of Color Space

Hardware Color Switch

Image Scale

Hardware Scale

Image Adjustment

The image adjustment of brightness, contrast, hue, saturation

                                                         Others

OS Support

It supports the following operating systems (x86 and x64 versions):
Windows 7 Windows Server
2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)

Software Compatibility

Windows Media Encoder (Windows)
Adobe Flash Media Live Encoder(Windows, OS X)
Real Producer Plus(Windows)
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X), etc.

APIs

DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux)

Onboard Memory

64MB DDR2, 16 bits@ 300 MHz

Size

84.25*42.8*12.6 (L/W/H, mm)

Power Consumption

<= 2.5W



aeProduct.getSubject()

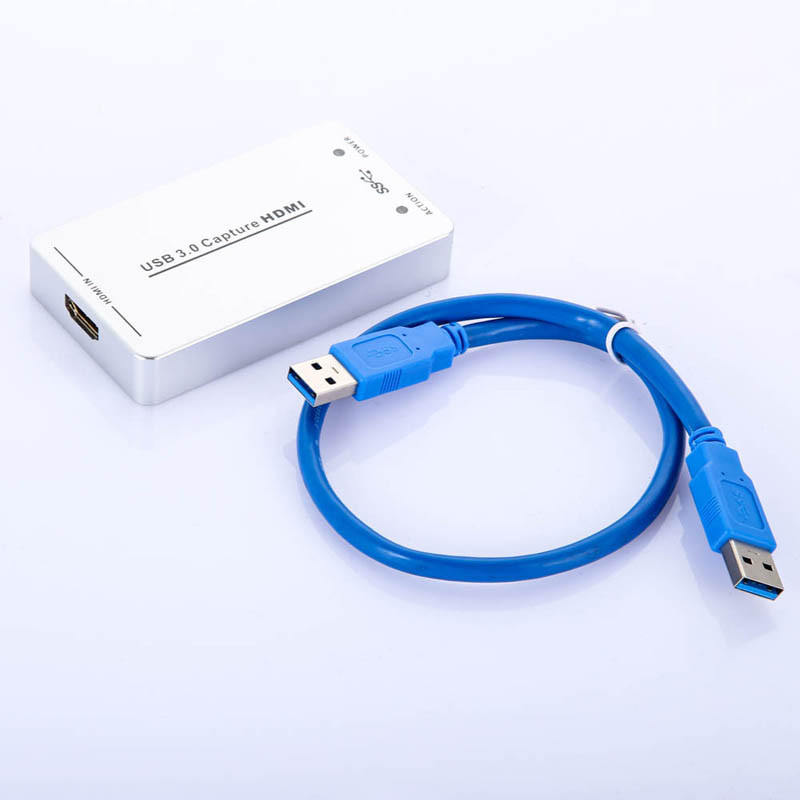

1 x HDMI Capture Dongle

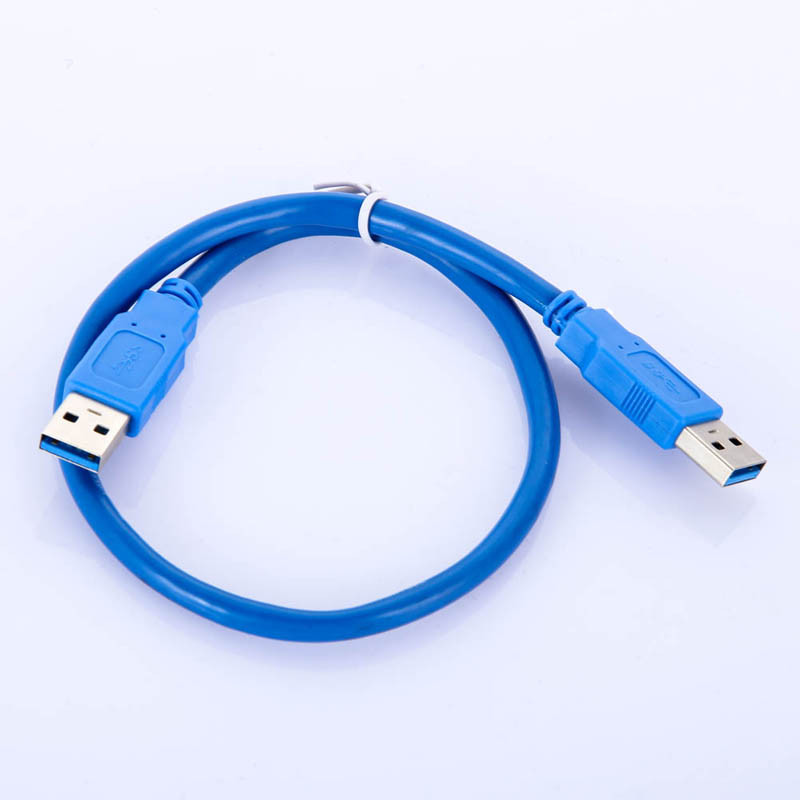

1 x USB Cable

1 x User Manual
