2016 Micromake 3D Printer Linear Guide DIY Kit Kossel Delta Auto Leveling Metal Printer injection version

  • 2016 Micromake 3D Printer Linear Guide DIY Kit Kossel Delta Auto Leveling Metal Printer injection version

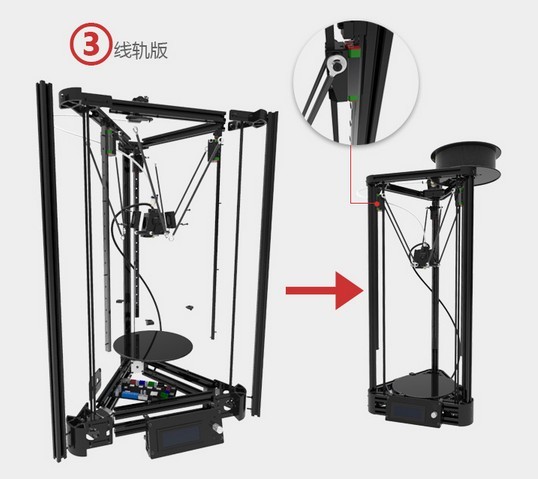

A linear guide rail printer
Unnamed QQ Screenshot20160510144625

Gift: Tools and 250g filament

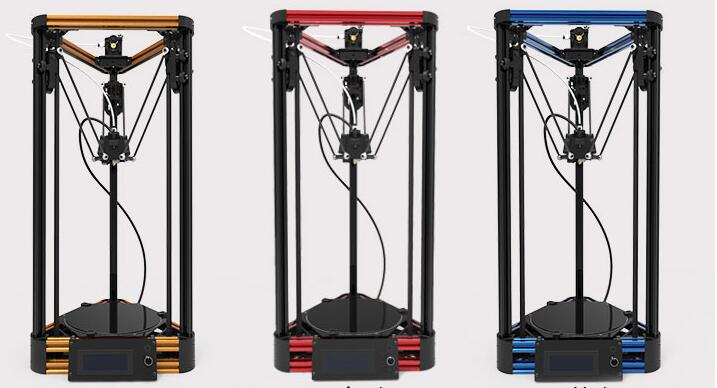

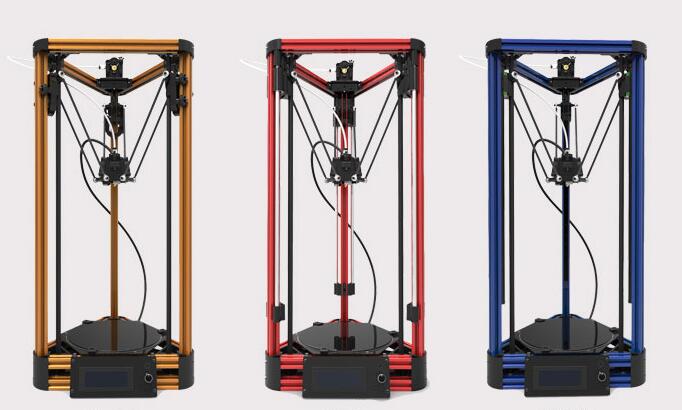

There are different colours to choose:
Black, red, blue, gold, black-red, black-blue, black-gold. (Please indicate the colour when you purchase or we will post you the black one.
The linear guide rail slider can prevent from the slider off during the installation process. It is of high quality which can perform much more smooth than the other standard 3D printers.

This is a DIY kit which includes all the parts to print. Step by step videos are provided to show you how to assemble the machine.


Micromake Technical Specifications:
Body size: width 30cm height 68cm
Colour of the printer: black
Layer resolution of 50 microns.
MAX Printing Speed: 150 mm/s.
Print size: 180mm*300mm.
Full Metal E3D V5 long distance J-head nozzle Extruder.
Material type: PLA, ABS wood, nylon
Material specifications 1.75mm in diameter.
Positioning accuracy: Z 0.004mm, XY 0.012mm.
Printing Color: Single color.
Nozzle diameter: 0.4mm.
Recommended extruder temperature: 250°C.
Heating plate temperature: 70-110°C
Best ambient temperature: ≥25°C.
Power requirements: 220V, 250W, 50Hz, 0.89A.
Connection: SD card or USB.
The file print format: STL,G-Code.
Compatibility: Windows, Linux, Mac
Device Package weight: around 8kg
1.All injection molding non-standard parts
2.Black oxidation aluminum profile
3.High performance control board
4.Double air duct effector
5.High intensity extruder


This printer is not only of high quality, but also with a very competitive price. We have resellers from the US, Australia, Turkey and Japan. If you are a reseller from overseas, please contact me for more discounts. We are looking forward to have a long term business with you.


We can offer consumables such as PLA and ABS and combine the shipping fee. Please contact us for the price if you want consumables to post with the machine.

Please be aware that it is the buyers\' responsibility to pay their custom tax if there is any.

DHL is set as a default delivery method. We might choose to use other fast delivery companies such as FEDEX, DHL UPS or TNT based on the advantage of your country. If there is any need for us to post you the second parcel such as replacements, China post will be used or extra fee is needed for the fast delivery.


For customers who live in a remote area, we might charge you an extra fee even if the item is set as free shipping. Free shipping is for those who live in a normal area instead of country side. For more details, please contact us before you place an order.



What makes you to buy this printer?


This is the new version of an auto level extruder. First, it has a specific advanced cooling fan attached with the special design of a double air path. The material can be cooled down instantly after exiting from an extruder. This can avoid the collapse of the artwork because of pressure or lack of support in order to obtain the best result.

Second, unlike the other printer, doing the fast print, it does not take time to wait for the last layer to cool down so to continue the next layer. This can make the printing process faster.

Third, we have improved the auto level. A spring attached can make the extruder bounce to the positionperfectly. Last, a high quality plastic set made by injection molding can enhance the degree of accuracy.


Unnamed QQ Screenshot20151020213538



These plastic pieces are all produced by injection molding, which has very high strength, high duration  and unbreakable. Pieces must be perfectly identical with no errors which can ensure the printer to have  high degree of accuracy and stability.

Unnamed QQ Screenshot20151020213417




A userfriendly 3D printer board has different shapes of plug utilized to ensure a user does not connect wires in the wrong or opposite way. For your safety, plugs are of 4pin, 3pin, 2pin and different colors. This can also avoid any damage or burn to the board caused by the wrong connections. DRV8825 instead of A4988 is utilized, which can give a better accuracy and performance to the printer.





There are three layers of box used to the package to make sure the safety during the delivery process. Screws are in separate bags based on their types.


Unnamed QQ Screenshot20151020213443

Unnamed QQ Screenshot20160224121130Unnamed QQ Screenshot20160224121239

Unnamed QQ Screenshot20160411135357Unnamed QQ Screenshot20151020213604


Be aware that we do not post glue to overseas, since liquid forms of any sort is not allowed to deliver.



Photos below are all from our customers. If you also want to share your artwork, please send me photos so I can post up here.

Unnamed QQ Screenshot20150414032807


Unnamed QQ Screenshot20150414032816


Unnamed QQ Screenshot20150414033045Unnamed QQ Screenshot20150414033054

Unnamed QQ Screenshot20150518092922Unnamed QQ Screenshot20150518092932Unnamed QQ Screenshot20150518092954Unnamed QQ Screenshot20150518093011Unnamed QQ Screenshot20150521225209Unnamed QQ Screenshot20150521225252Unnamed QQ Screenshot20150521225445



Contact me if you want 500 gram or 1kg of PLA. We can combine the shipping cost and post them to you togehter with your printer.







Unnamed QQ Screenshot20160131110751







Part list of the 3D printer.

screws X 1
Limit block X 3
Control board  X 1
LCD screen cover X 1
Control board chassis X 1
LCD screen bracket X 2
DC USB interface panel X 1
2GT synchronous belt X 1
PTFE tube X 1
Beam line X 1
Belt connector X 3
Serial 2:
LCD screen X 1
USB connecting line X 1
Serial 3:
12V 6A X 1
Limit switch X 3
Corner set X 1
Corner set X 1
Nozzle X 1
Wire feeding machine set X 1
68cm 2020 European standard aluminum profile X 3
Linear guide X 3
1.75mm PLA printing supplies X 1
Glass X 1
