2016 Micromake 3D printer DIY injection version of delta parallel arm Kossel pulley version with hot bed and power supply large


  • 2016 Micromake 3D printer DIY injection version of delta parallel arm Kossel pulley version with hot bed and power supply large



Selection:



Pulley version - Pulley version 3D printer kit without a heated bed

Add heated bed - Pulley version 3D printer kit with a heated bed



Gift: Tools and 250g filament

QQ20170430165115

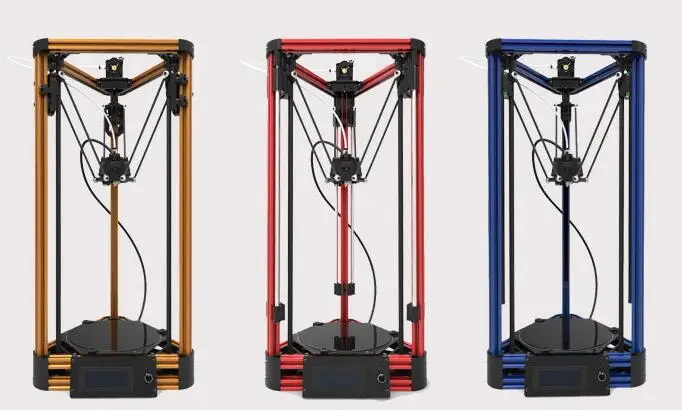

There are different colours to choose:
Black, red, blue, gold, black-red, black-blue, black-gold. (Please indicate the colour when you purchase or we will post you the black one.

QQ20170430164448
QQ20170430164511



QQ20161114115821QQ20161114115421



This is a DIY kit which includes all the parts to print. Step by step videos are provided to show you how to assemble the machine.



Micromake Technical Specifications:
Body size: width 30cm height 68cm
Colour of the printer: black
Layer resolution of 50 microns.
MAX Printing Speed: 150 mm/s.
Print size: 180mm*300mm.
Full Metal E3D V5 long distance J-head nozzle Extruder.
Material type: PLA, ABS wood, nylon
Material specifications 1.75mm in diameter.
Positioning accuracy: Z 0.004mm, XY 0.012mm.
Printing Color: Single color.
Nozzle diameter: 0.4mm.
Recommended extruder temperature: 250°C.
Heating plate temperature: 70-110°C
Best ambient temperature: ≥25°C.
Power requirements: 220V, 250W, 50Hz, 0.89A.
Connection: SD card or USB.
The file print format: STL,G-Code.
Compatibility: Windows, Linux, Mac
Device Package weight: around 8kg

Features:
1.All injection molding non-standard parts
2.Black oxidation aluminum profile
3.High performance control board
4.Double air duct effector
5.High intensity extruder



This printer is not only of high quality, but also with a very competitive price. We have resellers from the US, Australia, Turkey and Japan. If you are a reseller from overseas, please contact me for more discounts. We are looking forward to have a long term business with you.



We can offer consumables such as PLA and ABS and combine the shipping fee. Please contact us for the price if you want consumables to post with the machine.

Please be aware that it is the buyers\' responsibility to pay their custom tax if there is any.

DHL is set as a default delivery method. We might choose to use other fast delivery companies such as FEDEX, DHL UPS or TNT based on the advantage of your country. If there is any need for us to post you the second parcel such as replacements, China post will be used or extra fee is needed for the fast delivery.



For customers who live in a remote area, we might charge you an extra fee even if the item is set as free shipping. Free shipping is for those who live in a normal area instead of country side. For more details, please contact us before you place an order.



Unnamed QQ Screenshot20151211214354

Unnamed QQ Screenshot20161229181051Unnamed QQ Screenshot20161229181059



Unnamed QQ Screenshot20161111220509





What makes you to buy this printer?



This is the new version of an auto level extruder. First, it has a specific advanced cooling fan attached with the special design of a double air path. The material can be cooled down instantly after exiting from an extruder. This can avoid the collapse of the artwork because of pressure or lack of support in order to obtain the best result.

Second, unlike the other printer, doing the fast print, it does not take time to wait for the last layer to cool down so to continue the next layer. This can make the printing process faster.

Third, we have improved the auto level. A spring attached can make the extruder bounce to the position perfectly. Last, a high quality plastic set made by injection molding can enhance the degree of accuracy.



Unnamed QQ Screenshot20151020213538





These plastic pieces are all produced by injection molding, which has very high strength, high duration and unbreakable. Pieces must be perfectly identical with no errors which can ensure the printer to have high degree of accuracy and stability.

Unnamed QQ Screenshot20151020213417







A userfriendly 3D printer board has different shapes of plug utilized to ensure a user does not connect wires in the wrong or opposite way. For your safety, plugs are of 4pin, 3pin, 2pin and different colors. This can also avoid any damage or burn to the board caused by the wrong connections. DRV8825 instead of A4988 is utilized, which can give a better accuracy and performance to the printer.



Unnamed QQ Screenshot20161229181119Unnamed QQ Screenshot20161229181136Unnamed QQ Screenshot20161229181146











Unnamed QQ Screenshot20160224121130Unnamed QQ Screenshot20160224121239

QQ20170302190202QQ20170302190211

Unnamed QQ Screenshot20151020213443Unnamed QQ Screenshot20151020213526Unnamed QQ Screenshot20151020213604



Be aware that we do not post glue to overseas, since liquid forms of any sort is not allowed to deliver.









Photos below are all from our customers. If you also want to share your artwork, please send me photos so I can post up here.

Unnamed QQ Screenshot20150414032807



Unnamed QQ Screenshot20150414032816



Unnamed QQ Screenshot20150414033045Unnamed QQ Screenshot20150414033054

Unnamed QQ Screenshot20150518092922Unnamed QQ Screenshot20150518092932Unnamed QQ Screenshot20150518092954Unnamed QQ Screenshot20150518093011Unnamed QQ Screenshot20150521225209Unnamed QQ Screenshot20150521225252Unnamed QQ Screenshot20150521225445



For more information:

This 3D printer DIY kit can be upgraded to the linear guide rail instead of pulley.

Click here if you want to upgrade to the linear guide rail.



Contact me if you want 500 gram or 1kg of PLA. We can combine the shipping cost and post them to you togehter with your printer.



IMG_2345IMG_2377IMG_2402IMG_2404

';
